Project Team Member Workflow (Tutorial) up to DB 39.5.0

Please note

• The following workflow applies to database versions up tp 39.5.0.
• The following table contains links to the other versions:

DB 39.5.14	go to the tutorial
DB 39.5.13	go to the tutorial
DB 39.5.7 - DB 39.5.12	go to the tutorial
DB 39.5.0 - DB 39.5.6	go to the tutorial
< DB 39.5.0	go to the tutorial
	go to further tutorials

Objective

• First-time users should learn how to use the program and it functions on the basis of typical use cases.

Please note

• All exercises are based on the PLANTA demo data. This data must be installed beforehand.
• The screenshots used are merely examples of functions. The screenshot layout may deviate from the program.

Working with PLANTA project

Log in

Procedure

• Double click on the PLANTA icon.
  • The PLANTA logo is now displayed and the network connection to the server is established.
• Before the PLANTA logo, a form with two input fields for the user ID (user code) and the password appears.
• In the upper input field, enter R1 for the user with the Project Team Member role (PLANTA demo user).
  • Demo users do not have passwords so that there is no input necessary in the second field.
• Confirm with OK.

PLANTA project Surface

Information

• Title bar: Forms the first line of the screen. The current panel name and the system name are displayed here.
• Menu bar: Forms the second line of the screen. Consists of individual pull down menus with menu items.
• Toolbar: Forms the third line of the screen. Consists of buttons for the most commonly used menu items. If the symbol is colored it means that the corresponding menu item is activated. If the symbol is gray it means that the menu item is deactivated. What menu items are activated or not is determined by the customizing.
• Panel: Consists of a user menu, a main module and submodules. The main module and submodules can be arranged (docked) differently within a window. They can be laid over each other like index cards or positioned next to or above/below each other.
• Status bar: The status bar is used to output messages about the progress of the program, which do not require confirmation from the user in a message box. The message in the status bar always refers to the focused module, not to the whole panel.

See also: Getting Started

Module

Information

• A module enables data from the database to be displayed and edited, e.g.:
  • Project data
  • Task data
  • Assignment data (task-resource assignment)
• Data is displayed in the form of records.
  • A record summarizes attributes/parameters of an object (project, task, resource etc.) with their corresponding values.
  • Values are displayed in separate data fields.
    • What data fields may belong to a record (record structure) is determined by the customizing of the corresponding data area

• Here, five records are displayed: one project records and four task records.
  • The project record consists of four data fields (Project, Main project and Actual load: CW) and their corresponding values.
  • The task records consists of five fields (Task, Task name, Actual load, Forecast and Remaining) and their corresponding values.
  • All Remaining fields form a column. The data logical Remaining column equates to the layout column.

Module Variants

Information

• In PLANTA project, almost every module can easily be modified in the user's mode according to the user's individual requirements and saved as a variant of the modified module.
  • For instance, it is possible to display the fields that are most frequently used in a module while hiding all other fields.
• For some modules, PLANTA already provides default module variants.

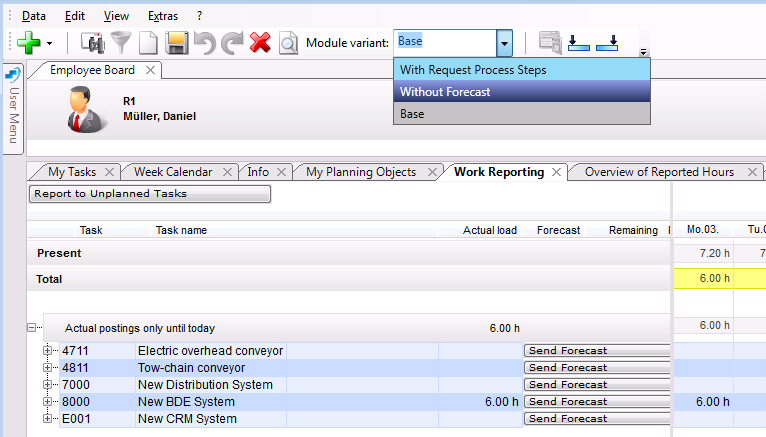

  • Every standard module has a module variant listbox in its toolbar.
    • If a module variants of a module are available, they are displayed in the listbox together with their Base variant.
    • If there are no module variants available, the listbox field is displayed gray.

• In order to switch to a module variant, do the following:
  • Open the module variant listbox.
  • Select the required variant.
  • The new variant is loaded.

---

See also: Module Variants

Edit Data/Insert New Entries/Delete Entries

Activate/Mark/Unmark

Procedure

• Activate
  • Via mouse-click or input
  • Only one data field can be activated (not the entire record). The record in which the activated field is located is focused. It is highlighted light green.

• Mark
  • Via CTRL + mouse-click
  • The entire record is marked.
  • The marked record is highlighted dark blue.

• Demark
  • Via CTRL + click on the marked record

Edit

Edit existing values

• Which data fields can be edited and how they can be edited in existing records depends, among other things, on the data field type.
  • Input data fields: Here, you can make inputs and edit them at any time. These fields are blue upon activation.
  • Output data fields: Here, no data can be edited. These fields are gray upon activation.
  • Link data fields: These are data fields whose values are displayed in the form of hyperlinks. If you click on a link, you will be led to another module, for instance.
  • Listboxes: These are input fields to which listboxes containing values belong, so that you can either select a value from the default list or make a manual input.
  • Mandatory data fields: These are fields that implicitly have to be filled with values. You cannot save if these fields are not filled. These fields are marked with an asterisk.
  • Checkboxes: These are fields which only accept Yes/No entries by setting or removing a checkmark.
  • Traffic lights: These are fields with a traffic light function (color).
  • Continuous text fields: These are fields in which you can enter longer texts.

Enter new values

• You can enter new values either manually or copy them from other fields. For this purpose, you can use PLANTA's own Drag&Drop Copy function replacing the conventional CTRL + C and CTRL + V.
  • Field to field (default setting)
    • By pressing CTRL and holding the left mouse button, drag the content of the source field to the target field.
    • As soon as the cursor is over the target field, release the left mouse button.
    • The source field value is copied to the target field.
  • Field to column
    • Define the operation in the menu bar via Edit Drag&Drop Copy Field to column.
    • Mark all the target records (CTRL + click on the start record and SHIFT + click on the end record)
    • By pressing CTRL and holding the left mouse button, drag the content of the source field to the target field (target column).
    • As soon as the cursor is over the target field, release the left mouse button.
    • The value of the source data field is entered in all records of the target column for the marked records.
  • Column to column
    • Define the operation in the menu bar via Edit Drag&Drop Copy Column to column.
    • Mark all the target records (CTRL + click on the start record and SHIFT + click on the end record)
    • By pressing CTRL and holding the left mouse button, drag the content of the source column to the target column.
    • As soon as the cursor is over the target field, release the left mouse button.
    • The values of the fields from the source column are entered in the corresponding data fields of the target column for all marked records.

Insert new records

• Therefore,
  • focus the required record (by clicking on a field in the required record) and
    • select the required option by right-clicking or
    • click on the plus symbol in the toolbar or
    • click on the plus symbol in the data area heading line.

Initial situation

Result

Save

Procedure

• You can save data
  • by clicking on the disk symbol in the toolbar,
  • by pressing CTRL + S or
  • by using the Edit--> Save menu items.
• If some of the data records are still invalid (blank lines) when you save, the following message appears: Mark invalid data records?
  • If this message is confirmed with Yes, the records with empty ID are marked. These records can be edited or deleted.
  • If the message is confirmed with No, the invalid records are not marked.

Delete

Procedure

• Mark the required record and press the Delete button in the tool bar.
• The following message appears: Delete marked data?
• Confirm it with Yes.
• If the record to be deleted contains dependent data (subordinate records), depending on settings made in the custpomizer they are either instantly deleted or the following query is displayed: Delete dependent data?. This query either be confirmed or not. Delete dependent data?, that are either confirmed or not confirmed.

See also: Programm Operation

Documenation/Online Help

Information

• For the PLANTA project documentation, PLANTA uses an online documentation tool based on TWiki software.
  • Up to version C 39.5.0, PLANTA provided an extra web (a website) for every new release. These webs are listed in the menu bar on the left.
  • From version C 39.5.0, various releases are documented in one web (called Current), versionized display is done through tabs that are displayed next to each other.
  • Within a web, the content is divided into topics (websites).
  • The following types of topics are distinguished:
    • Module topics: They contain descriptions of individual modules (a topic contains the description of a module).
    • Data field topics: They contain descriptions of individual data fields (a topic contains the description of all data fields used in a data table).
    • FAQ topics: They contain the answers to frequently asked questions.
    • Function topics: They contain descriptions of individual, important functions e.g. WorkBreakdownStructure.
    • Workflow topics (tutorials): They contain workflow and process related descriptions that again contain working processes, concrete examples and exercises, e.g. the Project Workflow. They can be used as basis for trainings or self-studies.
• Each PLANTA project user has read-only access to the complete documentation.
• Currently, only PLANTA employees have modification rights.

Open documentation

• There are several ways to open the PLANTA documentation:
• If PLANTA project is already opened, you can do so by
  • opening the required module and pressing F2 or selecting the ? Module Description menu item. You are directly led to the description of the current module.
  • activating the required data field and pressing F1 or selecting the ? Data Field Description menu item. You are directly led to the description of the current data field.
  • Or you can open the documentation independently from modules and data fields by pressing CTRL + M or selecting the ? Open Manual menu item. The start page of the documentation opens from which you can navigate to the required themes via the search function of the table of contents.
• You can also access the PLANTA documentation without being logged on to PLANTA project via http://wiki.planta.de.

Note

• If you press F1 or F2 on a field or in a module that is not contained in the standard program but was individually customized in your system, one page on the PLANTA Wiki is opened, informing you that you currently are on an individual object.

Navigate and search

• Navigate
  • You can navigate through the structure of the web by using the table of contents.
  • In the other direction, you can navigate via the topic path at the top of each topic.
  • If you want to navigate between two topics on the same level, you first switch to the parent topic and from there you can switch to the required topic.
• Search:
  • Jump input field: The string specified here is only searched for in topic names. The input Schedule, for instance, exactly finds two topics: ScheduleMOD0099AN and CopyScheduleMOD0099J9.
  • Search input field: The string specified here is searched for in the topic content. The input Schedule, for instance, finds approx. 60 topics. If the entered string is supposed to be a compound (word combination), please put them in quotation marks, e.g. "copy project".
  • Via table of contents

---

See also: Working with PLANTA Wiki

Employee Board

Information

• Each PLANTA project user has the Employee Board menu item in the user menu.
• Via this menu item, the Employee Board panel is opened which summarizes modules that are relevant to all PLANTA users regardless of their particular role, e.g. Reporting Of Hours Worked module or the My Tasks module.
• The following examples are explained using the PLANTA demo user R1, whose only role is that of a Project Team Member and who has no modification rights for the project.

My Tasks

Initial situation

• Employee Mr. Daniel Müller starts PLANTA project with his user R1 and wants to catch up on the tasks planned for him today and complete them.

Procedure

• Log on to PLANTA project with R1 user code (no password).

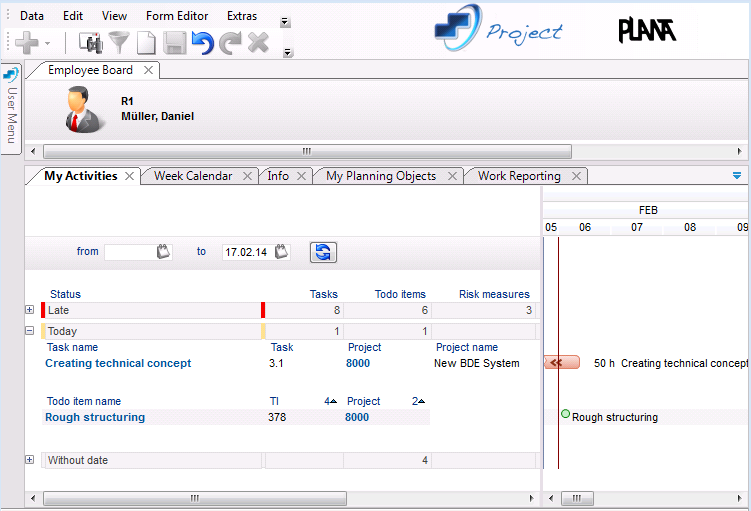

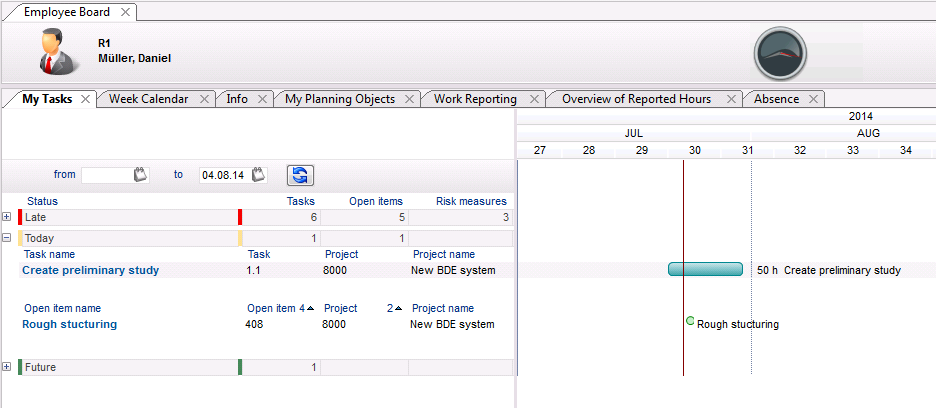

• The Employee Board of employee R1, Mr. Müller, is opened and the My Tasks module is automatically focused.
• In this module, all the tasks to be completed (todo) by Mr. Müller (Planned tasks, Open items, Risks, Opportunities und Process steps) are grouped by date status (Late, Today, Future, Without date).
• In the Open items column in the Today status group, Mr. Müller sees the entry 1. This means that he has to complete one open item.

• Mr. Müller completes 80% of this open item and, then, wants to enter the degree of completion for it in PLANTA project. However, he cannot do this directly in the My Tasks module.
• He has to open the editing module for this open item.
  • Therefore, he clicks on the link on the open item name.

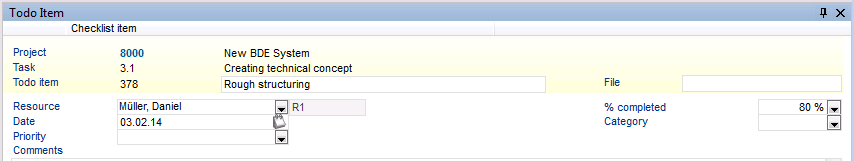

  • The Open Item module opens, in which all important data that refer to the open item are displayed.
• In the % completed field, Mr. Müller enters the degree of completion in %. In this case, it is 80%.

Reporting of Hours Worked

Initial situation

• Mr. Müller wants to report the hours he already spent on the completion of open item 408.

Note

• PLANTA project standard does not provide the reporting of hours worked to open items. Each open item refers to a certain task or is part of it. This means, hours worked are reported to the corresponding task.

Procedure

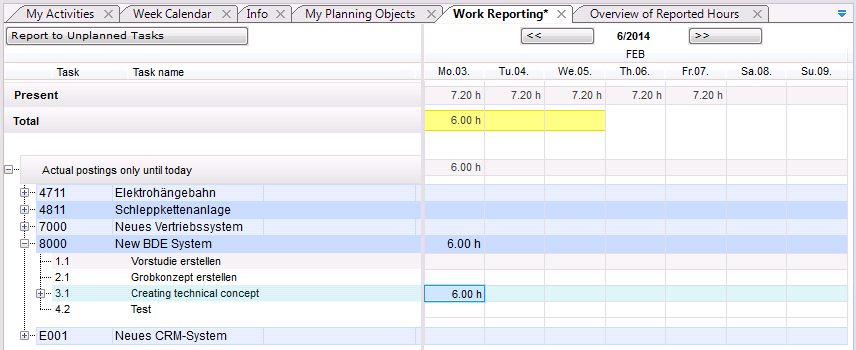

• In his employee board, Mr. Müller clicks on the Work Reporting tab.
  • In the left window, all projects and - if you expand them - all tasks are displayed for which the employee is scheduled.
• He expands the record of project 8000 and sees the record of task 3.1 to which he wants report hours worked.
• In the right window, in the record of task 1.1, he clicks in the field below today's date and enters the number of hours he worked for task 1.1, e.g. 6.

Details

• If the project manager refreshs the schedule of project 8000 afterwards, he or she will see the work reporting of resource R1.

Initial situation

• While working on open item 408, Mr. Müller has encountered several problems. Now, he is afraid that for the completion of the corresponding task a higher effort will be needed. He wants to inform the project manager of this additional effort.

Procedure

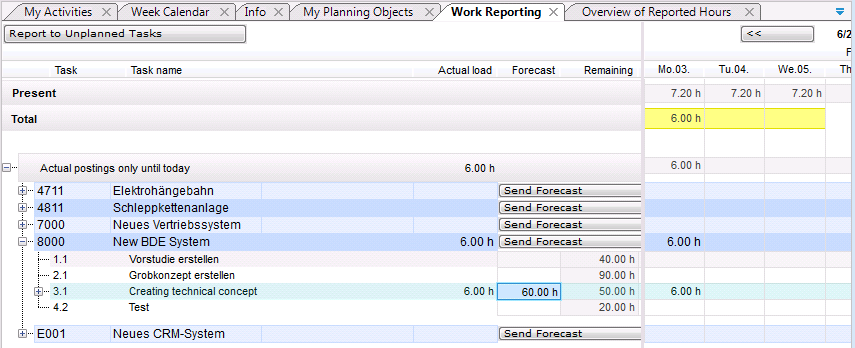

• In the Work Reporting module, in the record of task 1.1 in the Forecast field, Mr. Müller enters the presumed remaining effort in hours and
• clicks on the Send Forecast button.

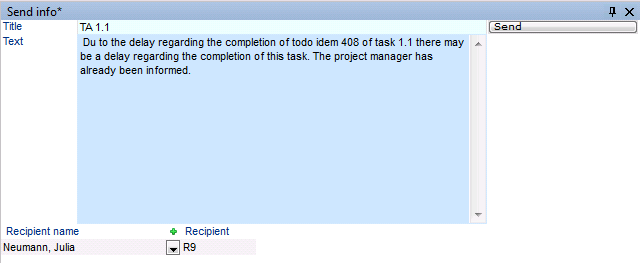

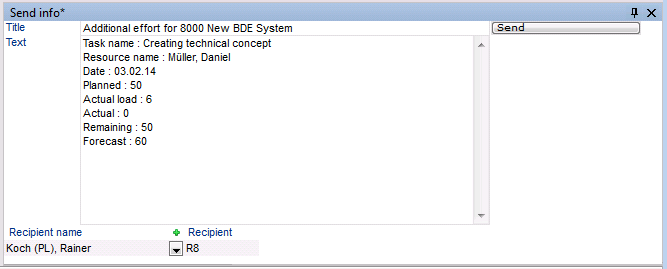

• The Send Info module including an already automatically created message is opened.
  • The message contains the following data: task name, resource (sender), planned, actual, remaining and forecast values for effort.
  • The project manager of the project is entered as recipient automatically.

• Click on the Send button.
• The project manager will receive this message either in the form of a pop-up window or he will see it in the Dashboard of the project.

Other work reporting options

• Beside the option described above, employees can also report their hours worked in the Reporting Hours Worked module, which can be opened either
  • from the My Tasks module by right-clicking on the required activity and selecting the corresponding context menu command or
  • by clicking on the black clock in the employee board or in the user menu (the first double-click starts the time recording, the second one ends the time recording and starts the Reporting Hours Worked module).
• If the employee is not planned for a task but has worked on that task nevertheless, the employee can also report his/her hours for this task.
  • For this purpose, the employee has to click on the To unplanned tasks button in the Work Reporting module and select the required project and task in the opened Reporting Hours Worked module.
• For further information, see here.

Information Exchange

Initial situation

• Mr. Müller knows that his colleague Julia Neumann is also working on this task, so he wants to inform her about the delay as well.

Procedure

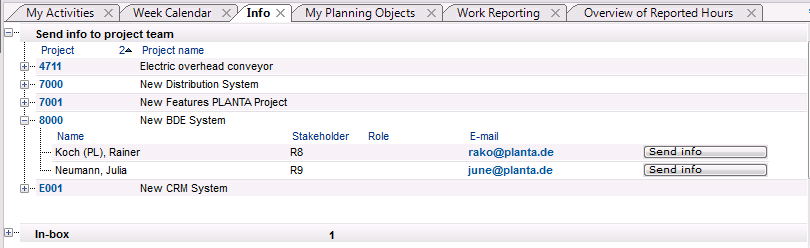

• Therefore, Mr. Müller activates the Info tab or clicks on the info symbol in the toolbar.
• In the Send info to project team area, he expands the tree structure of project 8000 and clicks on the Send Info button in the record of Julia Neumann.

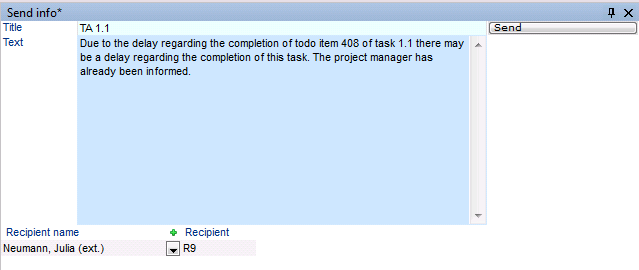

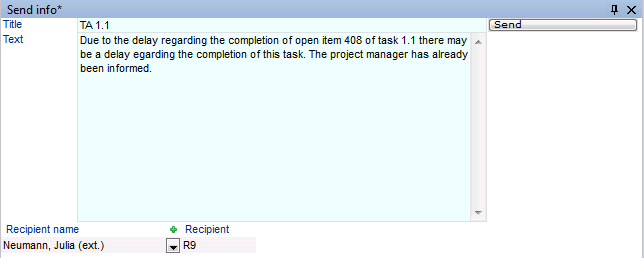

• So, he switches to the Send Info module.

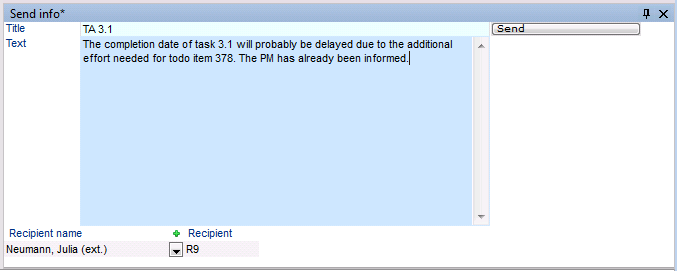

• In the text field of the module, he enters the information and clicks on the Send button.

Details

• Employee Julia Neumann will receive this message in the form of either a pop-up window or an e-mail, depending on the reception settings or she can obtain this info in the Dashboard or Info module.

Week Calendar

Task

• Mr. Müller wants to get information about his schedule for the entire week.

Procedure

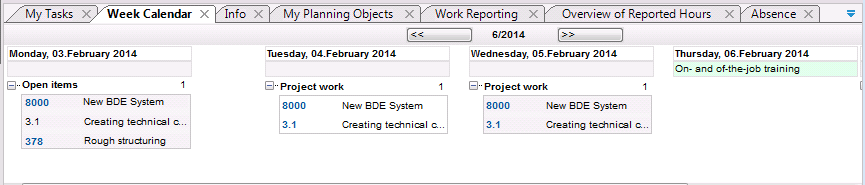

• Therefore, he clicks on the Week Calendar tab.
• In this module, he can view all of his/her open activities per weekday for the current week.
• If he wants to view the schedule for another week, he can switch to the required week via the button above the weekday name.
• Every activity is displayed in its own box below the corresponding day.
• On the ID numbers of activities, there are links which lead to the corresponding editing modules (e.g. the Task module for tasks), where you can enter the completion status or edit other data, if necessary.
• Furthermore, in the field directly below the weekday name, Mr. Müller can see by the color of the field, whether he is on vacation or is abscent for another reason (yellow = vacation, green = absence).

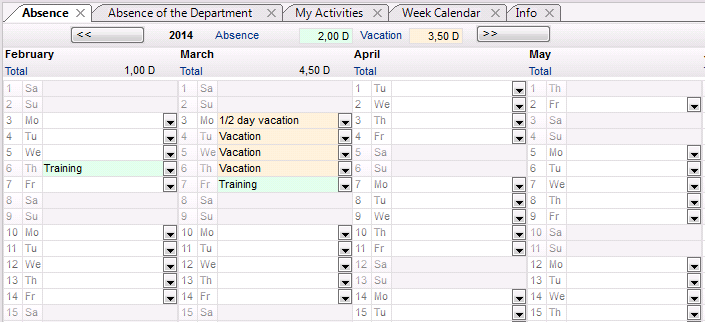

Plan Vacation and Absence

Initial situation

• Mr. Müller wants to go on vacation for four days between August 11th and 15th. However, he does not want to go on vacation before the afternoon of August 11th, since he has an important phone conference in the morning. Furthermore, he has a training on August 15th. Before he asks for approval of the vacation by his project manager, he wants to know, whether other colleagues have already planned their vacation in this period.

Procedure

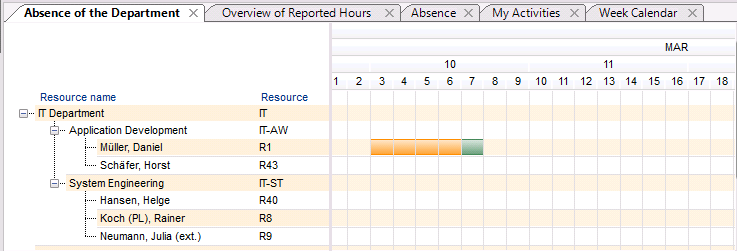

• For this purpose, he activates the Vacation of the Department tab.
• Here, all employees of his department are listed and in the corresponding employee record below the scale, the already planned absence or vacation times are displayed in the form of yellow or green boxes.
• Mr. Müller sees that no entries are available in the period planned for vacation.
• After that, he asks the project manager to approve his vacation.

Initial situation

• Subsequently, Mr. Müller wants to enter his vacation in PLANTA project, so that other colleagues can see it as well and consider it in their own planning.

Procedure

• For this purpose, he activates the Absence tab.
• Here, the entire year calendar is displayed.
• On each day field, there is a listbox with absence types and absence reasons.
• Mr. Müller selects for August 11th the 1/2 day vacation entry and for the three remaining days, he selects the Vacation entry and for August 15th the On- and off-the-job training entry from the listbox.
• As a result, each one of these fields is colored accordingly.
• In the record above the calendar, the entire number of entered vacation and absence days is output.

Details

• As soon as Mr. Müller has saved the entries, his vacation or absence days are displayed in the Vacation of the Department and Week Calendar modules.
