User Data Workflow (Tutorial) DB 39.5.13

Please note

  • The following tutorial applies to the PLANTA versions 39.5.13.
  • The following table contains links to the other versions:
DB 39.5.14 go to the tutorial
DB 39.5.13 go to the tutorial
DB 39.5.0 - DB 39.5.12 go to the tutorial
< DB 39.5.0 go to the tutorial
  go to further tutorials

Introduction

Objective

  • This workflow teachs users with administrator rights how set up PLANTA project to enable employees to work with PLANTA software.

Information

  • In order to be able to work with PLANTA software, an employee must first be created and defined as a person, user, resource and stakeholder in the program by the administrator.
  • Employee data and rights can be entered and administrated in the Administration panel of PLANTA project which contains all the required modules.
    • In a standard system, the roles of the customizer (P20), the project administrator (R49) and the multi-project manager (R41) have access rights for these modules.
    • For entering the resource data, multi-project management rights are additionally required. This authorization is assigned in the Users module in the Object rights: name field.
    • Authorizations (roles and rights) can be changed in PLANTA project depending on individual company requirements. For more information see rights control.

Notes

  • All exercises are based on the PLANTA demo data. This data must be installed beforehand.
  • The screenshots used are merely examples of functions. The screenshot layout may deviate from the program.

Create Persons (R41)

Task

  • Ralf Schulze, the new employee, has to be entered in the system as a person, so that he can work with the program.

Information

  • Persons are part of the basic elements in PLANTA software.
  • They are necessary in order to assign further attributes e.g. user names to the employees (persons) or to define them as resources so that they can be planned in projects.

Procedure

  • Logon with user R41.
  • In the user menu, call up Project Management Administration Master Data.
  • Select the Administration link in the user menu.
    • The panel with the same name and the Persons main module is opened.
  • Press the New button in the Persons module.
    • As a result, a new person data record is inserted in which the personal data of the new employee can be entered.
  • Fill Name, First name and Code fields.
    • Save.

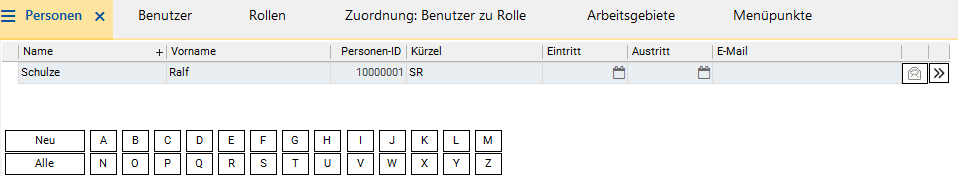

  • Result:

Create Person Attributes

Task

  • Ralf Schulze needs to be assigned a user name so that he can log on to the program.
  • Furthermore, Ralf Schulze has to be defined as:
    • stakeholder so that he can join project teams,
    • resource so that he can be scheduled in projects and report his worked hours to the appropriate projects.

Information

  • Each person is given three attributes: user, stakeholder and person resource.
    • User: to log on to the PLANTA software
    • Stakeholder: to assemble project teams
    • Person resource: to assign someone to a project as a resource
Procedure

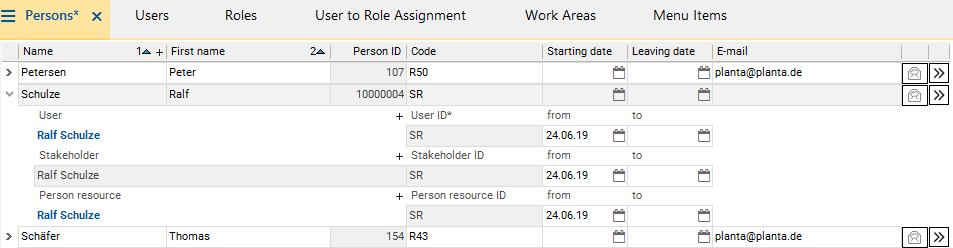

  • In the Persons module in the data record for Ralf Schulze press the ButtonPersoneneigenschaften.png Create Person Attributes button and save.
    • Three attributes (User, Stakeholder and Person resource) and the corresponding code are automatically assigned to the person of Ralf Schulze.
      • The code for all three attributes is the same as the person code.

Define a Person as Resource

Task

  • Although Ralf Schulze is given a resource code when the classifications were created, this is not sufficient in order to schedule him in projects as a resource. Further settings have to be made.
  • Ralf Schulze's available capacity for project work must first be defined.

Procedure

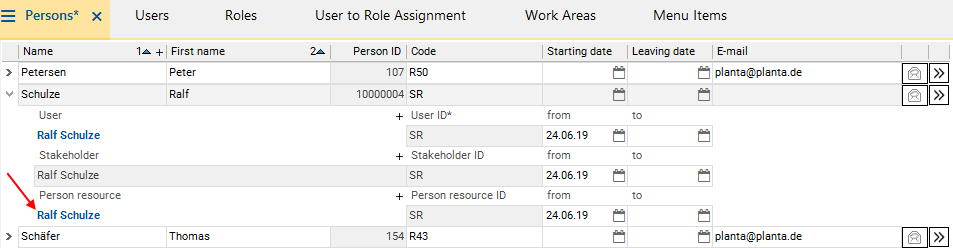

  • In the Persons module in the person resource data record for Ralf Schulze click on the link on the person resource name.



  • More entries may be added at a later point in time if required.

Details

  • By clicking on the Display Availabilty button you switch to the Availability module in which the resource's availability per day is defined.

Define User Data (R41)

Note

  • The persons' user data are not defined and edited directly in the Persons module, but in the Users module.

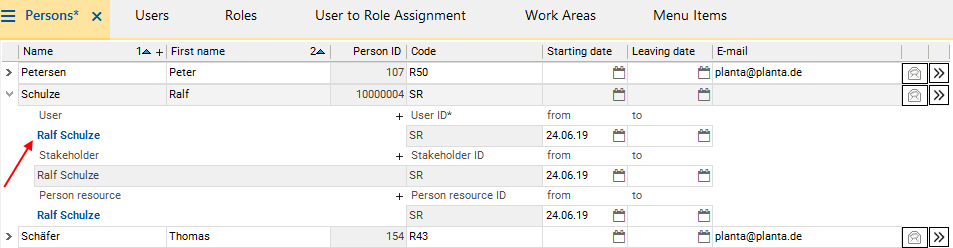

    • To do so, click on the link on the user name in the user data record of the corresponding person.


  • As a result, you will be switched to the Users module and the data record of the required user will be presented.

User Password

Note

  • Ralf Schulze, the newly created user, requires a password in order to be able to log on to the program.
    • When creating a user, a blank default password is saved in the data base.
    • This password has to be changed immediately by the user into the password of their choosing after the first logon.
    • If no blank passwords are desired for security reasons, the administrator can alternatively create a temporary password for each new user that has to be entered when logging on for the first time. The user will then also have to change the password.

Assign Roles to a User

Task

  • In company X, Ralf Schulze is to assume the role of project manager for project Y.
    • To be able to do this, the role of the project manager in PLANTA project must be assigned to Ralf Schulze.

Information

  • Through the role assignment the user is given access rights to certain objects (modules, menu items that are grouped in work areas).
  • To each user at least two roles have to be assigned. One controls the access to menu items and the other one(s) to modules.
  • When delivering the program, the standard roles defined by PLANTA are made available for the customer. In the Roles module, these roles can be edited or adapted according to the company requirements and individual roles can be created.
  • Further information about rights control in PLANTA project.
    • Please read this information carefully as the following tasks assume an understanding of the PLANTA role and rights concept.

Procedure

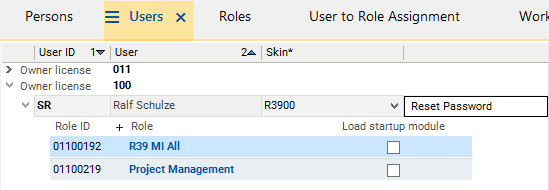

  • In the Users modul, right-click on the user data record of Ralf Schulze and select Insert--> Role.
  • A role data record is inserted.
    • Select the role of the project manager, in the standard system 01100219 Project Management from the listbox in the Role field. Save.

  • Insert another role data record and select one of the standard roles for menu items, e.g. 01100192 R39 MI All, from the listbox.
    • For every user it is obligatory that they be assigned a menu item role. Without such a role the user cannot start the program. Attempting to log on with a user not having access to menu items results in the following message: IEmenu_send(): menuitems couldn't be fetched. Closing application. (See log file for further information).
  • Save.

  • After Ralf Schulze has logged on to the system, he can see the menus that are assigned to him and the corresponding menu items in his toolbar. In his user menu, he can see the role that is assigned to him.

Note

  • If the PLANTA standard roles Project Manager and R39 MI All do not meet with the requirements of company X, the user with administration rights can create new roles.

Excursion: Create a New Role

Procedure

  • Switch from the Administration panel to the Roles module.
    • As PLANTA supplies standard roles when delivering the program, they are available when calling up the module.
  • Right-click on an already existing role and select the Insert Role command.
  • In the Role name field, assign a name to the new role. Save.
  • Upon saving, an ID number is automatically generated in the Role field.
    • If the new role is a menu item, the Invisible in menu check box of this role has to be activated.
  • Assign work areas to the new role:
    • Right-click on Insert Work area and select the required work area from the listbox.
    • Save.
      • Standard work areas are offered for selection.
      • If an individual work area has to be assigned it has to be created and defined in the Work Areas module first.
      • For this procedure see Excursion: Create A New Work Area.

Excursion: Create a New Work Area

Procedure

  • Call up the Work Areas module.
    • In the Work Areas module, new work areas for modules are created and compiled. New work areas for menu items are created in a separate module, the Menu Item module. For further information, please refer to the Restrict Access To Menu Items section.
  • Automatically, a blank work area data record appears.
  • In the Work area field, assign a name to the new work area.
  • After the input has been confirmed, a number is generated automatically in the Work area ID field.
  • Select GR Module grouping from the listbox on the Category name field.
  • Assign modules to the work area. To do this:
    • Right-click on the work area data record and select the Module command.
    • The module data record is inserted.
    • Select the number of the required module from the listbox or enter it manually.
      • Only modules that were recently created by the user are available here.
    • Save.
  • In the same way, assign further modules to the work area.

Restrict Access to Menu Items

Task

  • The multi-project manager of company X thinks that Ralf Schulze should only have access to certain menu items, namely the Data, Edit and View menu items. That is why he wants the access to menu items for Ralf Schulze to be changed.
  • So far, Ralf Schulze still has access to the Form Editor, Extras, Tools and ? menu items.


Procedure

  • In the Administration panel, open the Menu Item module.
    • The module contains two PLANTA standard work areas for menu items that are not allowed to be changed.
    • In order to restrict the access to menu items for Ralf Schulze, an individual work area has to be created and assigned to an individual role.

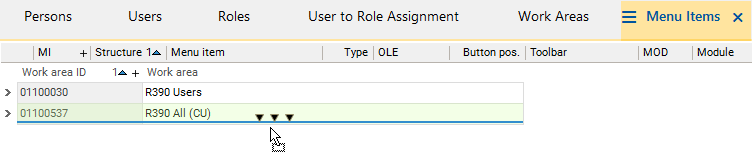

  • Copy work area R390 All (CU) via Drag&Drop (select the Record(s) Drag+Drop copy option).

  • Confirm the message.

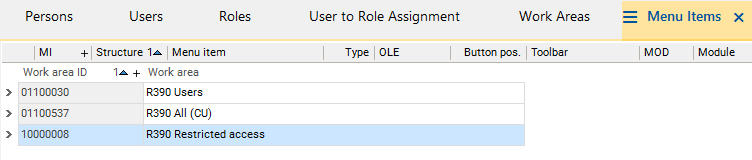

  • Doing this, a new work area is created automatically and all data records (in this case menu items) are copied from the source work area to the new one. Roles assigned to the source work area are not copied.
  • Assign a name to the new work area, e.g. R390 Restricted access.

  • In the new work area, menu items can be deleted or deactivated, according to requirements.
    • There are two ways of deactivating menu items.
      • Normal menu items:
        • are hard-coded and cannot be deleted from the work area.
          • In order to deactivate normal menu items, enter 0 in the Structure field.
      • Menu items for calling up macros and modules (marked the number 0001)
        • can be created, deleted or, like normal menu items, deactivated individually per work area.
          • To deactivate them, enter 0 in the Structure field or delete them from the work area.
    • In the case of Ralf Schulze, enter 0 in the Structure fields for all menus starting from the Structure value 04 (MI 319, Menu item Form Editor).
      • For this workflow, do not change the Data (Structure values 01, 01.01, etc.), Edit (02, 02.01, etc.) and View (03, 03.01, etc.) data records.

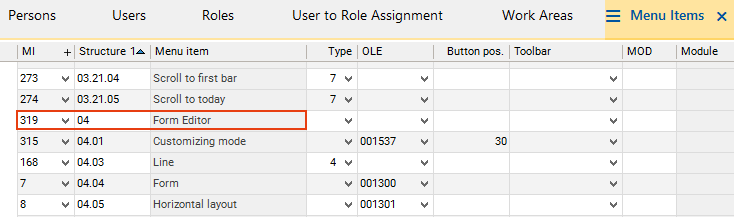

  • Before:

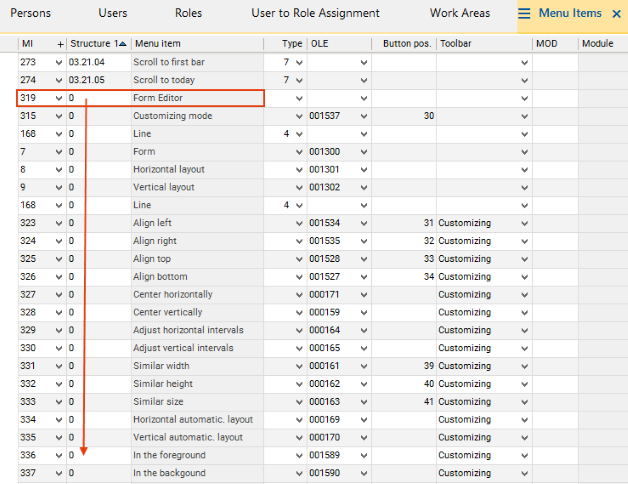

  • After:

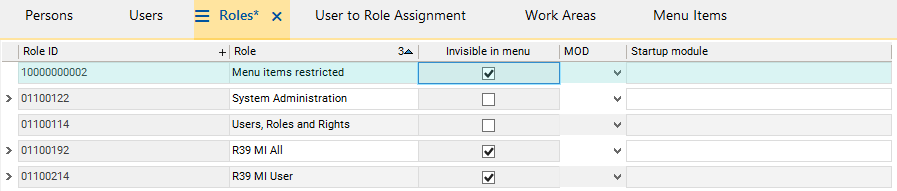

  • Switch to the Roles module.
  • Right-click on an already existing role and select the Insert Role command to create a new role data record.
    • In the Role name field of the new record, enter a name (e.g. Menu items restricted).
    • Activate the Invisible in menu check box of this role.
    • Save.


  • By right-clicking and selecting Insert Work area, assign the newly created R390 Restricted access work area to this role.
    • Save.

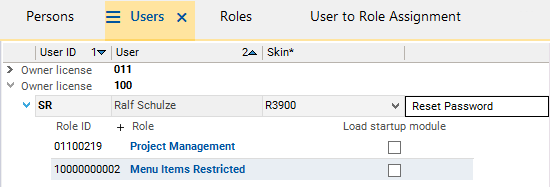

  • Switch to the Users module and assign the new role to Ralf Schulze manually.
    • Delete the standard menu item role R39 All (CU).

  • After Ralf Schulze has logged on to the system, he can see the menus Data, Edit and View and the corresponding menu items in his toolbar.

Note

  • In the same way, single menu items within menus can be deactivated.

Define User Start-Up Module (P20)

Task

  • When Ralf Schulze logs on to PLANTA project, the Critical Projects module shall be automatically opened.

Information

  • In order to complete this take, the corresponding start-up macro has to be assigned to the user Ralf Schulze.

Procedure

  • Log on with user R41.
    • In the user menu, call up Multi-Project Management Reports Project Overviews to open the panel of the same name.
      • Activate the Critical Projects tab.
    • In the Critical Projects module, select ? Module information in the toolbar.
      • Look for the module number below the code MOD and note it down.
  • Log on with user P20.

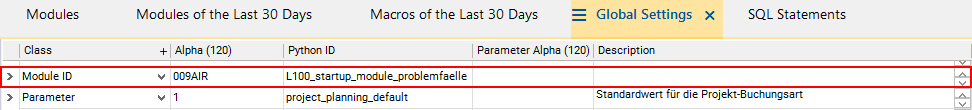

    • In the Global settings module, add a global settings data record by right-clicking and selecting Insert Global settings.
    • Below Class select Module ID from the listbox.
    • Below Alpha 120 enter the previously noted module number of the Critical Projects module.
    • Enter a python ID in the Python ID field, e.g.:
      • L100_startup_module_problemfaelle for the startup of the Critical Projects module.
        • The license number L100 is just an example. Depending on the customer's license number, it will be entered here automatically.
    • Save.

  • In order to define a startup macro, create a new module in the Modules module.
  • For this, enter a description below Module (e.g. Call up Critical Projects).
  • Below Class select 6 Macro module from the listbox.

  • Switch to the Python Macros module by pressing the ButtonPythonMakroBearbeiten.png Edit Python macro button.
  • Here, press on the ButtonPythonMakroBearbeitungAufrufen.png Open Python macro editing button.
  • The editor is opened.
    • Insert the following macro via copy/paste:

from ppms import ppms_cu

mod_obj=ppms.get_target_module()

module_id=ppms_cu.Helper.get_global_setting("L100_startup_module_problemfaelle").alpha120.get_value()

ppms_cu.Action(mod_obj).call_startup_module(module_id)

  • The result in PLANTA project will look like this:
  • Assign the new macro module to the 01100111 Startup Modules work area (right-click Assign module to a work area) so that later the new macro module is displayed in the Startup macro name listbox in the Users module.
  • Switch to the Administration panel (with R41) and open the Users module.

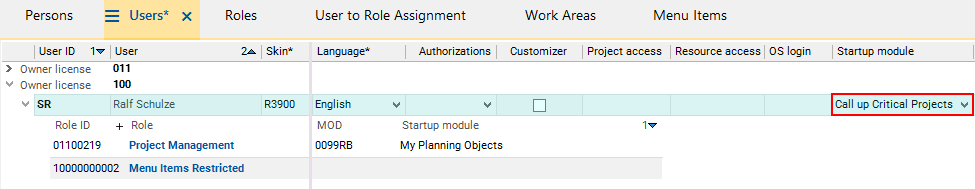

  • In the Startup macro name field in the user data record for Ralf Schulze select the newly created Call up Critical Projects macro from the listbox. In the Startup macro field, the number of this macro is displayed.
  • Save.

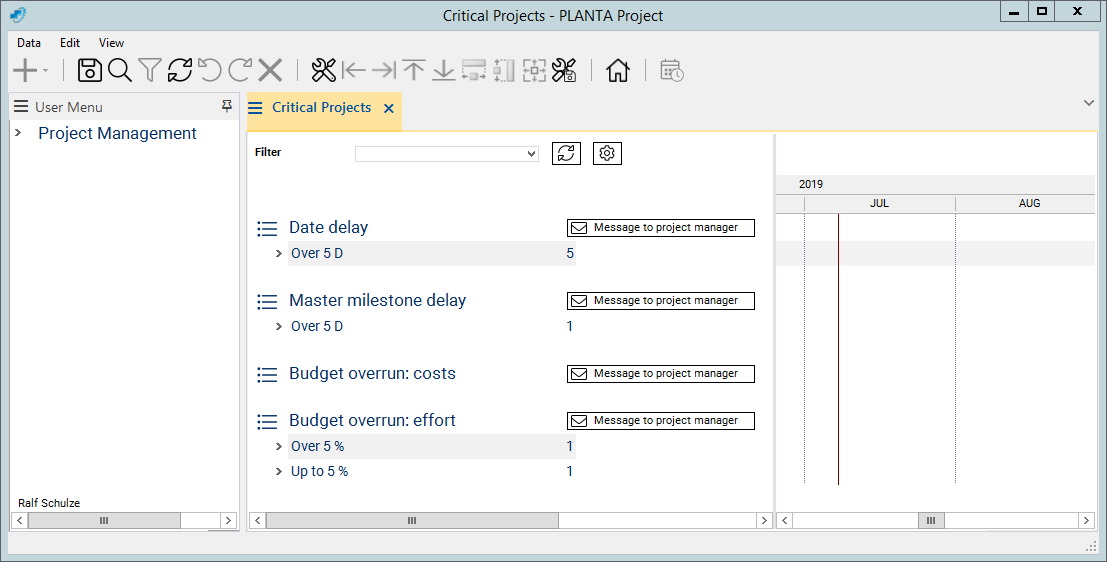

  • After Ralf Schulze logs on again, the Critical Projects module is started automatically.

Notes

  • Applying the procedure described above, the startup module is defined permanently for the user.
  • The administrator can assign a startup macro to the user that enables him to decide by himself which of the already defined startup modules are or are not called up when logging on to the program. For more information see here.
  • Already created startup modules do not have to be defined again but can be selected directly from the Startup macro name field in the user data record.
Topic attachments
I Attachment History Size Date Comment
Pngpng AnsichtMPsNachher.png r1 75.3 K 2019-07-18 - 07:10
Pngpng AnsichtMPsNachherEN.png r1 82.9 K 2019-07-18 - 07:11
Pngpng AnsichtMPsVergleichEN.png r1 83.9 K 2019-07-17 - 15:45
Pngpng AnsichtMPsVorherEN.png r1 83.9 K 2019-07-17 - 15:38
Pngpng BenutzerdatensatzLinkEN.png r2 r1 11.2 K 2019-07-18 - 06:10
Pngpng ButtonPersoneneigenschaften.png r1 0.5 K 2019-07-18 - 08:24
Pngpng ButtonPythonMakroBearbeiten.png r1 0.7 K 2019-07-17 - 15:20
Pngpng ButtonPythonMakroBearbeitungAufrufen.png r1 0.7 K 2019-07-17 - 15:19
Pngpng PersonAnlegen.png r2 r1 8.4 K 2019-07-18 - 06:07
Pngpng PersonAnlegenEN.png r2 r1 8.4 K 2019-07-18 - 06:07
Pngpng PersonenklassifizierungAnlegenEN.png r2 r1 10.6 K 2019-07-18 - 06:07
Pngpng PersonenressourceLinkEN.png r2 r1 11.0 K 2019-07-18 - 06:07
Pngpng RessourcenAnlegenEN.png r2 r1 20.2 K 2019-07-18 - 06:08
Pngpng RolleErstellen1EN.png r2 r1 6.1 K 2019-07-18 - 06:04
Pngpng RolleErstellen2EN.png r2 r1 5.2 K 2019-07-18 - 06:05
Pngpng RolleErstellen3EN.png r1 41.3 K 2019-07-08 - 07:47
Pngpng RolleErstellen4EN.png r2 r1 7.2 K 2019-07-18 - 06:05
Pngpng RolleErstellen5EN.png r2 r1 4.4 K 2019-07-18 - 06:05
Pngpng RolleErstellen6EN.png r2 r1 7.2 K 2019-07-18 - 06:05
Pngpng RolleErstellen7EN.png r1 148.2 K 2019-07-08 - 07:49
Pngpng RolleErstellen7ENmark.png r1 148.3 K 2019-07-08 - 08:00
Pngpng RolleZuordnen1EN.png r1 6.2 K 2019-07-08 - 07:46
Pngpng RolleZuordnen2EN.png r2 r1 7.0 K 2019-07-18 - 06:13
Pngpng RolleZuordnen3ENmark.png r1 148.7 K 2019-07-08 - 07:50
Pngpng StartupDefinieren1.1EN.png r2 r1 5.7 K 2019-07-18 - 08:18
Pngpng StartupDefinieren2.1EN.png r2 r1 34.9 K 2019-07-18 - 08:18
Pngpng StartupDefinieren3.1EN.png r2 r1 10.0 K 2019-07-18 - 08:18
Pngpng StartupDefinieren5.1EN.png r1 12.1 K 2019-07-08 - 07:49
Pngpng StartupDefinieren6.1EN.png r1 6.8 K 2019-07-08 - 07:49
Pngpng StartupDefinieren7.1EN.png r1 15.0 K 2019-07-08 - 07:50
Pngpng StrukturMPsNachherEN-85.png r2 r1 82.2 K 2019-07-18 - 06:06
Pngpng StrukturMPsVorherEN.png r2 r1 7.9 K 2019-07-18 - 06:06

         PLANTA project










  • Suche in Topic-Namen

  • Suche in Topic-Inhalten
This site is powered by the TWiki collaboration platform Powered by Perl
